Lab 04: Packaging

Warmup - Stepping through time

We now have all necessary functions in place to make agents perform one step of our simulation. At the beginning of each step an animal looses energy. Afterwards it tries to find some food, which it will subsequently eat. If the animal then has less than zero energy it dies and is removed from the world. If it has positive energy it will try to reproduce.

Plants have a simpler life. They simply grow if they have not reached their maximal size.

Exercise

Implement a method agent_step!(::Animal,::World) which performs the following steps:

Decrement $E$ of agent by 1.0.
With $p_{f}$ , try to find some food and eat it.
If $E < 0$ , the animal dies.
With $p_{r}$ , try to reproduce.

Implement a method agent_step!(::Plant,::World) which performs the following steps:

If the size of the plant is smaller than max_size, increment the plant's size by one.

Show solution

julia

function agent_step!(p::Plant, w::World)
    if p.size < p.max_size
        p.size += 1
    end
end

function agent_step!(a::Animal, w::World)
    a.energy -= 1
    if rand() <= a.foodprob
        dinner = find_food(a,w)
        eat!(a, dinner, w)
    end
    if a.energy < 0
        kill_agent!(a,w)
        return
    end
    if rand() <= a.reprprob
        reproduce!(a,w)
    end
end

An agent_step! of a sheep in a world with a single grass should make it consume the grass, let it reproduce, and eventually die if there is no more food and its energy is at zero:

julia

julia> sheep = Sheep(1,2.0,2.0,1.0,1.0,male);

julia> grass = Grass(2,2,2);

julia> world = World([sheep, grass])
Main.World{Main.Agent}
  🌿  #2 100% grown
  🐑♂ #1 E=2.0 ΔE=2.0 pr=1.0 pf=1.0

julia> agent_step!(sheep, world); world
Main.World{Main.Agent}
  🌿  #2 0% grown
  🐑♂ #1 E=5.0 ΔE=2.0 pr=1.0 pf=1.0

julia> # NOTE: The second agent step leads to an error.
       # Can you figure out what is the problem here?
       agent_step!(sheep, world); world
ERROR: MethodError: no method matching eat!(::Main.Animal{🐑}, ::Nothing, ::Main.World{Main.Agent})
The function `eat!` exists, but no method is defined for this combination of argument types.

[0mClosest candidates are:
[0m  eat!(::Main.Animal{🐑}, [91m::Main.Plant{🌿}[39m, ::Main.World)
[0m[90m   @[39m [36mMain[39m [90m~/work/Scientific-Programming-in-Julia/Scientific-Programming-in-Julia/docs/build/lectures/lecture_03/[39m[90m[4mLab03Ecosystem.jl:104[24m[39m
[0m  eat!([91m::Main.Animal{🐺}[39m, [91m::Main.Animal{🐑}[39m, ::Main.World)
[0m[90m   @[39m [36mMain[39m [90m~/work/Scientific-Programming-in-Julia/Scientific-Programming-in-Julia/docs/build/lectures/lecture_03/[39m[90m[4mLab03Ecosystem.jl:108[24m[39m

Exercise

Finally, lets implement a function world_step! which performs one agent_step! for each agent. Note that simply iterating over all agents could lead to problems because we are mutating the agent dictionary. One solution for this is to iterate over a copy of all agent IDs that are present when starting to iterate over agents. Additionally, it could happen that an agent is killed by another one before we apply agent_step! to it. To solve this you can check if a given ID is currently present in the World.

Show solution

julia

# make it possible to eat nothing
eat!(::Animal, ::Nothing, ::World) = nothing

function world_step!(world::World)
    # make sure that we only iterate over IDs that already exist in the
    # current timestep this lets us safely add agents
    ids = copy(keys(world.agents))

    for id in ids
        # agents can be killed by other agents, so make sure that we are
        # not stepping dead agents forward
        !haskey(world.agents,id) && continue

        a = world.agents[id]
        agent_step!(a,world)
    end
end

julia

julia> w = World([Sheep(1), Sheep(2), Wolf(3)])
Main.World{Main.Animal}
  🐑♀ #2 E=4.0 ΔE=0.2 pr=0.8 pf=0.6
  🐺♀ #3 E=10.0 ΔE=8.0 pr=0.1 pf=0.2
  🐑♂ #1 E=4.0 ΔE=0.2 pr=0.8 pf=0.6

julia> world_step!(w); w
Main.World{Main.Animal}
  🐑♀ #5 E=1.5 ΔE=0.2 pr=0.8 pf=0.6
  🐑♂ #4 E=1.5 ΔE=0.2 pr=0.8 pf=0.6
  🐑♀ #2 E=1.5 ΔE=0.2 pr=0.8 pf=0.6
  🐺♀ #3 E=9.0 ΔE=8.0 pr=0.1 pf=0.2
  🐑♂ #1 E=1.5 ΔE=0.2 pr=0.8 pf=0.6

julia> world_step!(w); w
Main.World{Main.Animal}
  🐑♀ #5 E=0.25 ΔE=0.2 pr=0.8 pf=0.6
  🐑♂ #4 E=0.5 ΔE=0.2 pr=0.8 pf=0.6
  🐑♀ #6 E=0.25 ΔE=0.2 pr=0.8 pf=0.6
  🐑♀ #7 E=0.25 ΔE=0.2 pr=0.8 pf=0.6
  🐑♀ #2 E=0.25 ΔE=0.2 pr=0.8 pf=0.6
  🐑♂ #8 E=0.25 ΔE=0.2 pr=0.8 pf=0.6
  🐺♀ #3 E=8.0 ΔE=8.0 pr=0.1 pf=0.2
  🐑♂ #1 E=0.25 ΔE=0.2 pr=0.8 pf=0.6

julia> world_step!(w); w
Main.World{Main.Animal}
  🐺♀ #3 E=7.0 ΔE=8.0 pr=0.1 pf=0.2

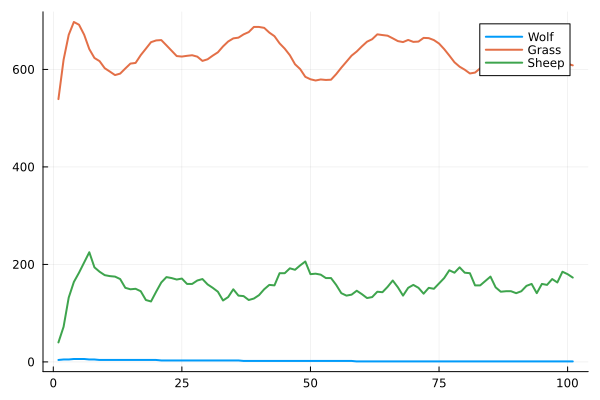

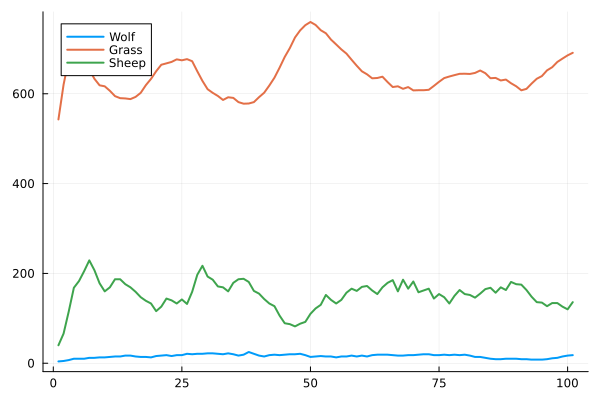

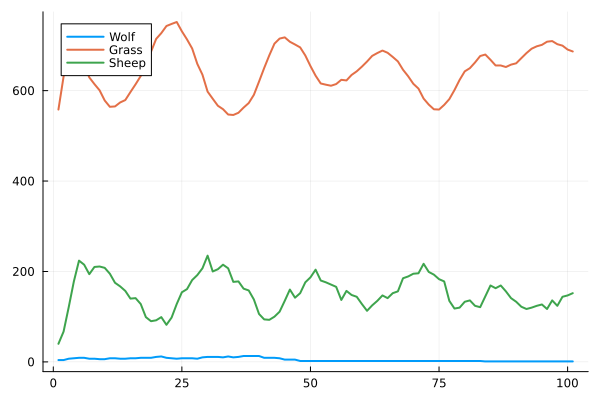

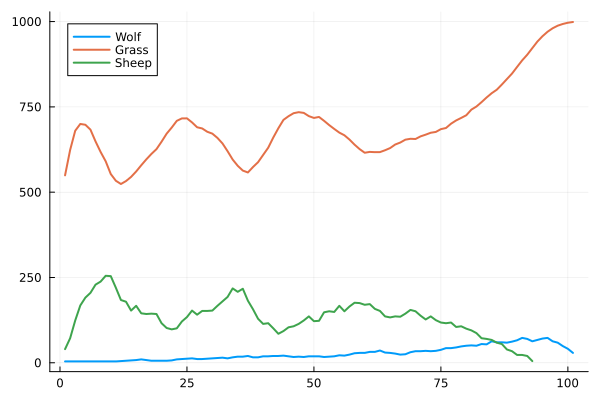

Finally, lets run a few simulation steps and plot the solution

julia

n_grass  = 1_000
n_sheep  = 40
n_wolves = 4

gs = [Grass(id) for id in 1:n_grass]
ss = [Sheep(id) for id in (n_grass+1):(n_grass+n_sheep)]
ws = [Wolf(id) for id in (n_grass+n_sheep+1):(n_grass+n_sheep+n_wolves)]
w  = World(vcat(gs,ss,ws))

counts = Dict(n=>[c] for (n,c) in agent_count(w))
for _ in 1:100
    world_step!(w)
    for (n,c) in agent_count(w)
        push!(counts[n],c)
    end
end

using Plots

plt = plot()
for (n,c) in counts
    plot!(plt, c, label=string(n), lw=2)
end
plt

Package: `Ecosystem.jl`

In the main section of this lab you will create your own Ecosystem.jl package to organize and test (!) the code that we have written so far.

`PkgTemplates.jl`

Exercise

The simplest way to create a new package in Julia is to use PkgTemplates.jl. ]add PkgTemplates to your global julia env and create a new package by running:

julia

using PkgTemplates
Template(interactive=true)("Ecosystem")

to interactively specify various options for your new package or use the following snippet to generate it programmatically:

julia

using PkgTemplates

# define the package template
template = Template(;
    user = "GithubUserName",            # github user name
    authors = ["Author1", "Author2"],   # list of authors
    dir = "/path/to/folder/",           # dir in which the package will be created
    julia = v"1.8",                     # compat version of Julia
    plugins = [
        !CompatHelper,                  # disable CompatHelper
        !TagBot,                        # disable TagBot
        Readme(; inline_badges = true), # added readme file with badges
        Tests(; project = true),        # added Project.toml file for unit tests
        Git(; manifest = false),        # add manifest.toml to .gitignore
        License(; name = "MIT")         # addedMIT licence
    ],
)

# execute the package template (this creates all files/folders)
template("Ecosystem")

Show solution

This should have created a new folder Ecosystem which looks like below.

.
├── LICENSE
├── Project.toml
├── README.md
├── src
│   └── Ecosystem.jl
└── test
    ├── Manifest.toml
    ├── Project.toml
    └── runtests.jl

If you ]activate /path/to/Ecosystem you should be able to run ]test to run the autogenerated test (which is not doing anything) and get the following output:

julia

(Ecosystem) pkg> test
     Testing Ecosystem
      Status `/private/var/folders/6h/l9_skfms2v3dt8z3zfnd2jr00000gn/T/jl_zd5Uai/Project.toml`
  [e77cd98c] Ecosystem v0.1.0 `~/repos/Ecosystem`
  [8dfed614] Test `@stdlib/Test`
      Status `/private/var/folders/6h/l9_skfms2v3dt8z3zfnd2jr00000gn/T/jl_zd5Uai/Manifest.toml`
  [e77cd98c] Ecosystem v0.1.0 `~/repos/Ecosystem`
  [2a0f44e3] Base64 `@stdlib/Base64`
  [b77e0a4c] InteractiveUtils `@stdlib/InteractiveUtils`
  [56ddb016] Logging `@stdlib/Logging`
  [d6f4376e] Markdown `@stdlib/Markdown`
  [9a3f8284] Random `@stdlib/Random`
  [ea8e919c] SHA v0.7.0 `@stdlib/SHA`
  [9e88b42a] Serialization `@stdlib/Serialization`
  [8dfed614] Test `@stdlib/Test`
     Testing Running tests...
Test Summary: |Time
Ecosystem.jl  | None  0.0s
     Testing Ecosystem tests passed

DANGER

From now on make sure that you always have the Ecosystem enviroment enabled. Otherwise you will not end up with the correct dependencies in your packages

Adding content to `Ecosystem.jl`

Exercise

Next, let's add the types and functions we have defined so far. You can use include("path/to/file.jl") in the main module file at src/Ecosystem.jl to bring some structure in your code. An exemplary file structure could look like below.

.
├── LICENSE
├── Manifest.toml
├── Project.toml
├── README.md
├── src
│   ├── Ecosystem.jl
│   ├── animal.jl
│   ├── plant.jl
│   └── world.jl
└── test
    └── runtests.jl

While you are adding functionality to your package you can make great use of Revise.jl. Loading Revise.jl before your Ecosystem.jl will automatically recompile (and invalidate old methods!) while you develop. You can install it in your global environment and and create a $HOME/.config/startup.jl which always loads Revise. It can look like this:

julia

# try/catch block to make sure you can start julia if Revise should not be installed
try
    using Revise
catch e
    @warn(e.msg)
end

DANGER

At some point along the way you should run into problems with the sample functions or when trying using StatsBase. This is normal, because you have not added the package to the Ecosystem environment yet. Adding it is as easy as ]add StatsBase. Your Ecosystem environment should now look like this:

julia

(Ecosystem) pkg> status
Project Ecosystem v0.1.0
Status `~/repos/Ecosystem/Project.toml`
    [2913bbd2] StatsBase v0.33.21

Exercise

In order to use your new types/functions like below

julia

using Ecosystem

Sheep(2)

you have to export them from your module. Add exports for all important types and functions.

Show solution

julia

# src/Ecosystem.jl
module Ecosystem

using StatsBase

export World
export Species, PlantSpecies, AnimalSpecies, Grass, Sheep, Wolf
export Agent, Plant, Animal
export agent_step!, eat!, eats, find_food, reproduce!, world_step!, agent_count

# ....

end

Unit tests

Every package should have tests which verify the correctness of your implementation, such that you can make changes to your codebase and remain confident that you did not break anything.

Julia's Test package provides you functionality to easily write unit tests.

Exercise

In the file test/runtests.jl, create a new @testset and write three @tests which check that the show methods we defined for Grass, Sheep, and Wolf work as expected.

The function repr(x) == "some string" to check if the string representation we defined in the Base.show overload returns what you expect.

Show solution

julia

julia> # using Ecosystem
       using Test

julia> @testset "Base.show" begin
           g = Grass(1,1,1)
           s = Animal{Sheep}(2,1,1,1,1,male)
           w = Animal{Wolf}(3,1,1,1,1,female)
           @test repr(g) == "🌿  #1 100% grown"
           @test repr(s) == "🐑♂ #2 E=1.0 ΔE=1.0 pr=1.0 pf=1.0"
           @test repr(w) == "🐺♀ #3 E=1.0 ΔE=1.0 pr=1.0 pf=1.0"
       end
[0m[1mTest Summary: | [22m[32m[1mPass  [22m[39m[36m[1mTotal  [22m[39m[0m[1mTime[22m
Base.show     | [32m   3  [39m[36m    3  [39m[0m0.5s
Test.DefaultTestSet("Base.show", Any[], 3, false, false, true, 1.761247582430753e9, 1.761247582938211e9, false, "REPL[2]", Random.Xoshiro(0xc20223e0c11fcc8a, 0x99dcf2980484dfd0, 0x89357a384325c2a3, 0x2197f41fc1f61da4, 0x28cc0ba06c2608a5))

Github CI

Exercise

If you want you can upload you package to Github and add the julia-runtest Github Action to automatically test your code for every new push you make to the repository.
