Lab 2: Predator-Prey Agents

In the next labs you will implement your own predator-prey model. The model will contain wolves, sheep, and - to feed your sheep - some grass. The final simulation will be turn-based and the agents will be able to eat each other, reproduce, and die in every iteration. At every iteration of the simulation each agent will step forward in time via the agent_step! function. The steps for the agent_step! methods of animals and plants are written below in pseudocode.

# for animals:
agent_step!(animal, world)
    decrement energy by 1
    find & eat food (with probability pf)
    die if no more energy
    reproduce (with probability pr)

# for plants:
agent_step!(plant, world)
    grow if not at maximum size

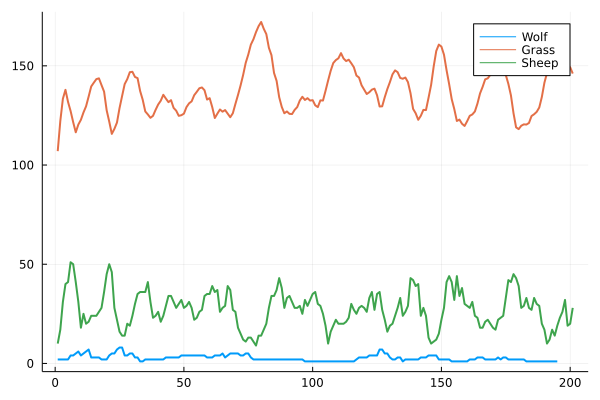

The world in which the agents live will be the simplest possible world with zero dimensions (i.e. a Dict of ID=>Agent). Running and plotting your final result could look something like the plot below.

We will start implementing the basic functionality for each Agent like eat!ing, reproduce!ing, and a very simplistic World for your agents to live in. In the next lab you will refine both the type hierarchy of your Agents, as well as the design of the World in order to leverage the power of Julia's type system and compiler.

We start with a very basic type hierarchy:

abstract type Agent end
abstract type Animal <: Agent end
abstract type Plant <: Agent end

We will implement the World for our Agents later, but it will essentially be implemented by a Dict which maps unique IDs to an Agent. Hence, every agent will need an ID.

The Grass Agent

Let's start by implementing some Grass which will later be able to grow during each iteration of our simulation.

Exercise

1. Define a mutable struct called Grass which is a subtype of Plant has the fields id (the unique identifier of this Agent - every agent needs one!), size (the current size of the Grass), and max_size. All fields should be integers.

2. Define a constructor for Grass which, given only an ID and a maximum size $m$, will create an instance of Grass that has a randomly initialized size in the range $[1,m]$. It should also be possible to create Grass, just with an ID and a default max_size of 10.

3. Implement Base.show(io::IO, g::Grass) to get custom printing of your Grass such that the Grass is displayed with its size in percent of its max_size.

Hint: You can implement a custom show method for a new type MyType like this:

struct MyType
    x::Bool
end
Base.show(io::IO, a::MyType) = print(io, "MyType $(a.x)")

Show solution

Since Julia 1.8 we can also declare some fields of mutable structs as const, which can be used both to prevent us from mutating immutable fields (such as the ID) but can also be used by the compiler in certain cases.

mutable struct Grass <: Plant
    const id::Int
    size::Int
    const max_size::Int
end

Grass(id,m=10) = Grass(id, rand(1:m), m)

function Base.show(io::IO, g::Grass)
    x = g.size/g.max_size * 100
    # hint: to type the leaf in the julia REPL you can do:
    # \:herb:<tab>
    print(io,"🌿 #$(g.id) $(round(Int,x))% grown")
end

Creating a few Grass agents can then look like this:

Grass(1,5)
g = Grass(2)
g.id = 5

Sheep and Wolf Agents

Animals are slightly different from plants. They will have an energy $E$, which will be increase (or decrease) if the agent eats (or reproduces) by a certain amount $\mathrm{\Delta }E$. Later we will also need a probability to find food $p_f$ and a probability to reproduce $p_r$.c

Exercise

1. Define two mutable structs Sheep and Wolf that are subtypes of Animal and have the fields id, energy, Δenergy, reprprob, and foodprob.

2. Define constructors with the following default values:

• For 🐑: $E=4$, $\mathrm{\Delta }E=0.2$, $p_r=0.8$, and $p_f=0.6$.

• For 🐺: $E=10$, $\mathrm{\Delta }E=8$, $p_r=0.1$, and $p_f=0.2$.

3. Overload Base.show to get pretty printing for your two new animals.

Show solution for Sheep

mutable struct Sheep <: Animal
    const id::Int
    energy::Float64
    const Δenergy::Float64
    const reprprob::Float64
    const foodprob::Float64
end

Sheep(id, e=4.0, Δe=0.2, pr=0.8, pf=0.6) = Sheep(id,e,Δe,pr,pf)

function Base.show(io::IO, s::Sheep)
    e = s.energy
    d = s.Δenergy
    pr = s.reprprob
    pf = s.foodprob
    print(io,"🐑 #$(s.id) E=$e ΔE=$d pr=$pr pf=$pf")
end

Show solution for Wolf

mutable struct Wolf <: Animal
    const id::Int
    energy::Float64
    const Δenergy::Float64
    const reprprob::Float64
    const foodprob::Float64
end

Wolf(id, e=10.0, Δe=8.0, pr=0.1, pf=0.2) = Wolf(id,e,Δe,pr,pf)

function Base.show(io::IO, w::Wolf)
    e = w.energy
    d = w.Δenergy
    pr = w.reprprob
    pf = w.foodprob
    print(io,"🐺 #$(w.id) E=$e ΔE=$d pr=$pr pf=$pf")
end

Sheep(4)
Wolf(5)

The World

Before our agents can eat or reproduce we need to build them a World. The simplest (and as you will later see, somewhat suboptimal) world is essentially a Dict from IDs to agents. Later we will also need the maximum ID, lets define a world with two fields:

mutable struct World{A<:Agent}
    agents::Dict{Int,A}
    max_id::Int
end

Exercise

Implement a constructor for the World which accepts a vector of Agents.

Show solution

function World(agents::Vector{<:Agent})
    max_id = maximum(a.id for a in agents)
    World(Dict(a.id=>a for a in agents), max_id)
end

# optional: overload Base.show
function Base.show(io::IO, w::World)
    println(io, typeof(w))
    for a in values(w.agents)
        println(io,"  ",a)
    end
end

Sheep eats Grass

We can implement the behaviour of our various agents with respect to each other by leveraging Julia's multiple dispatch.

Exercise

Implement a function eat!(::Sheep, ::Grass, ::World) which increases the sheep's energy by $\mathrm{\Delta }E$ multiplied by the size of the grass.

After the sheep's energy is updated the grass is eaten and its size counter has to be set to zero.

Note that you do not yet need the world in this function. It is needed later for the case of wolves eating sheep.

Show solution

function eat!(sheep::Sheep, grass::Grass, w::World)
    sheep.energy += grass.size * sheep.Δenergy
    grass.size = 0
end

Below you can see how a fully grown grass is eaten by a sheep. The sheep's energy changes size of the grass is set to zero.

grass = Grass(1)
sheep = Sheep(2)
world = World([grass, sheep])
eat!(sheep,grass,world);
world

Note that the order of the arguments has a meaning here. Calling eat!(grass,sheep,world) results in a MethodError which is great, because Grass cannot eat Sheep.

eat!(grass,sheep,world);

Wolf eats Sheep

Exercise

The eat! method for wolves increases the wolf's energy by sheep.energy * wolf.Δenergy and kills the sheep (i.e. removes the sheep from the world). There are other situations in which agents die , so it makes sense to implement another function kill_agent!(::Animal,::World).

Hint: You can use delete! to remove agents from the dictionary in your world.

Show solution

function eat!(wolf::Wolf, sheep::Sheep, w::World)
    wolf.energy += sheep.energy * wolf.Δenergy
    kill_agent!(sheep,w)
end

kill_agent!(a::Agent, w::World) = delete!(w.agents, a.id)

With a correct eat! method you should get results like this:

grass = Grass(1);
sheep = Sheep(2);
wolf  = Wolf(3);
world = World([grass, sheep, wolf])
eat!(wolf,sheep,world);
world

The sheep is removed from the world and the wolf's energy increased by $\mathrm{\Delta }E$.

Reproduction

Currently our animals can only eat. In our simulation we also want them to reproduce. We will do this by adding a reproduce! method to Animal.

Exercise

Write a function reproduce! that takes an Animal and a World. Reproducing will cost an animal half of its energy and then add an almost identical copy of the given animal to the world. The only thing that is different from parent to child is the ID. You can simply increase the max_id of the world by one and use that as the new ID for the child.

Show solution

function reproduce!(a::Animal, w::World)
    a.energy = a.energy/2
    new_id = w.max_id + 1
    â = deepcopy(a)
    â.id = new_id
    w.agents[â.id] = â
    w.max_id = new_id
end

You can avoid mutating the id field (which could be considered bad practice) by reconstructing the child from scratch:

function reproduce!(a::A, w::World) where A<:Animal
    a.energy = a.energy/2
    a_vals = [getproperty(a,n) for n in fieldnames(A) if n!=:id]
    new_id = w.max_id + 1
    â = A(new_id, a_vals...)
    w.agents[â.id] = â
    w.max_id = new_id
end

s1, s2 = Sheep(1), Sheep(2)
w = World([s1, s2])
reproduce!(s1, w);
w
